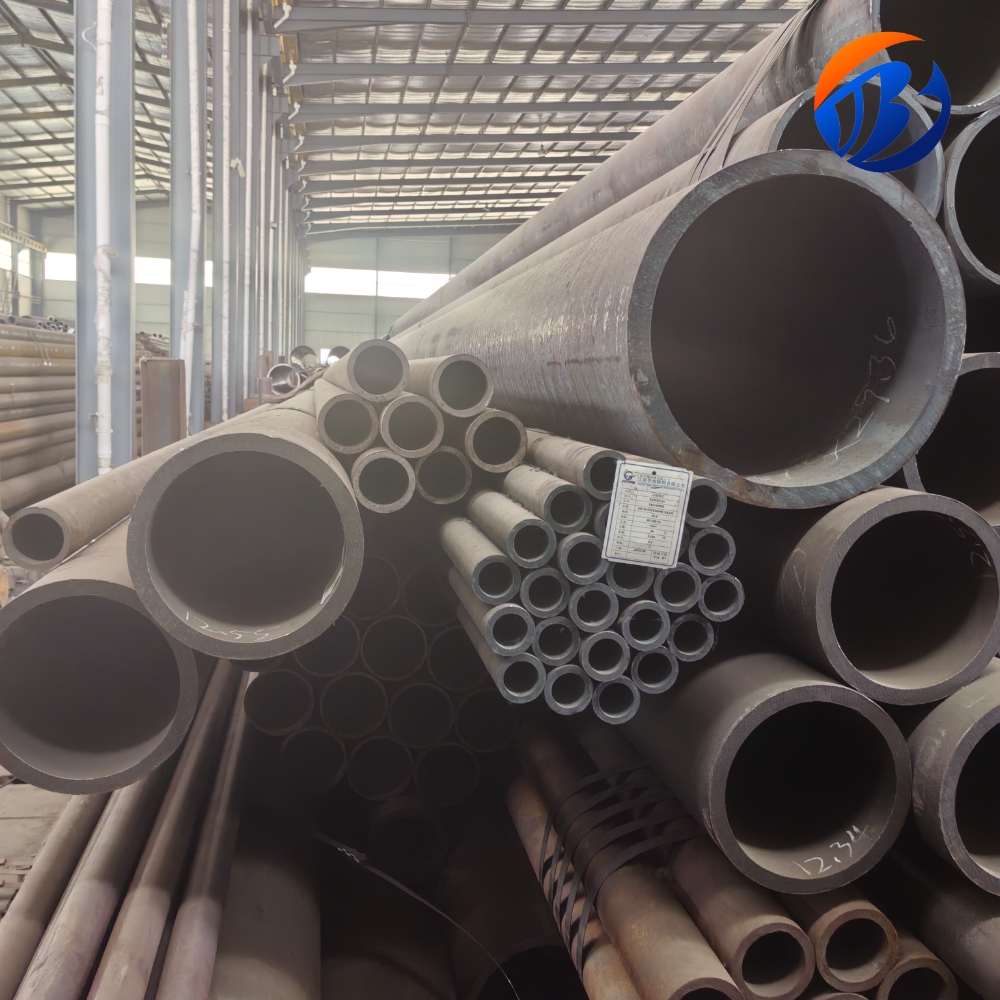

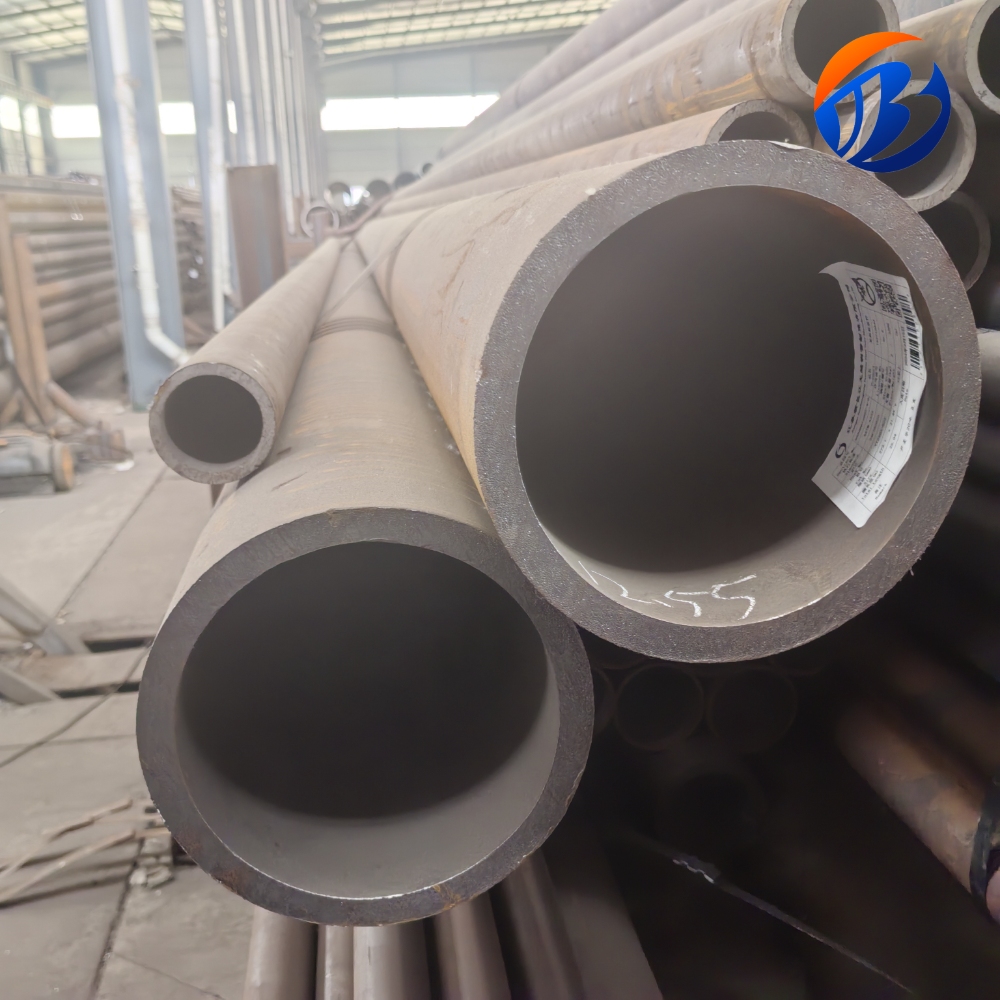

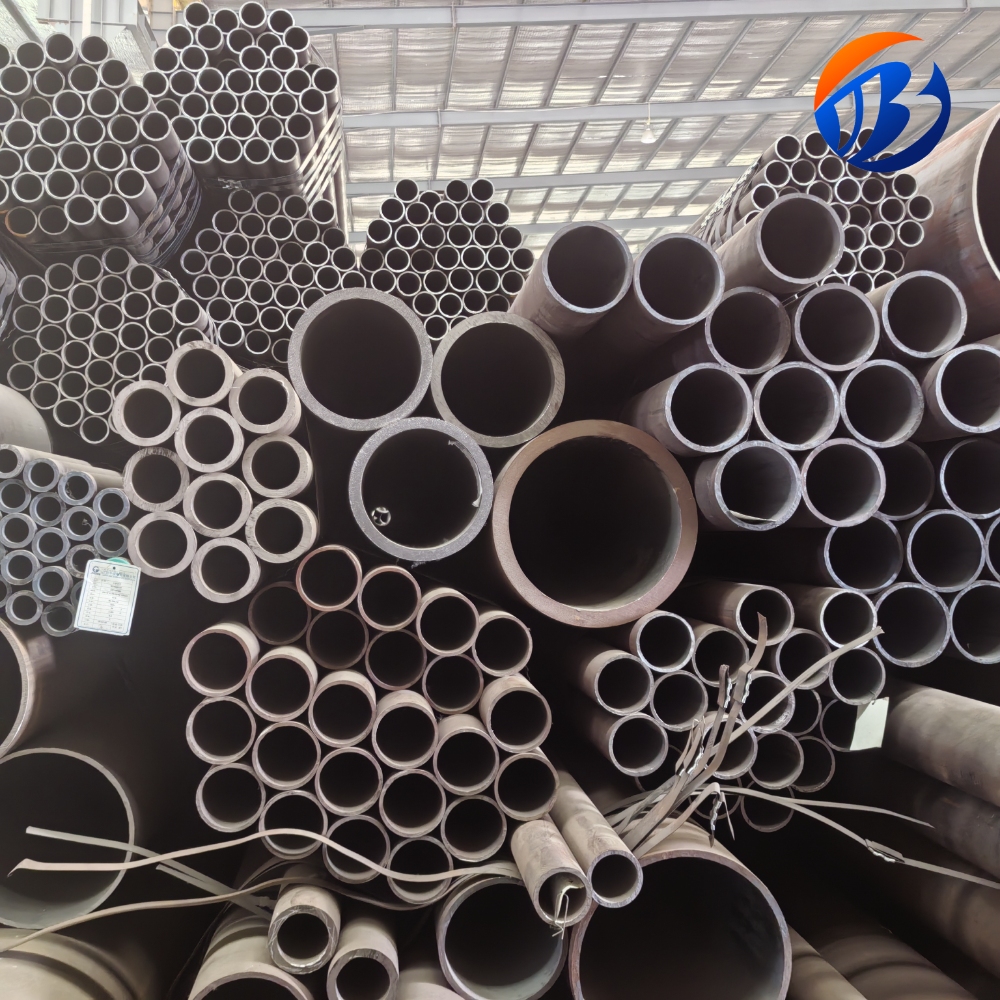

ASTM A333 Grade 6 seamless boiler tubes are high-quality carbon steel tubes specifically designed for low-temperature environments in boiler and pressure vessel applications. Manufactured in accordance with the ASTM A333 standard, Grade 6 tubes offer excellent impact toughness and durability at sub-zero temperatures, making them an ideal choice for boilers operating in cold environments or handling low-temperature fluids.

ASTM A333 Grade 6 boiler tubes are produced using a seamless manufacturing process, resulting in uniform wall thickness, excellent mechanical strength, and a smooth, weld-free inner surface. This construction enhances the tube’s resistance to pressure, thermal cycling, and stress corrosion, ensuring a long service life and safety in demanding boiler systems.

The chemical composition of Grade 6 steel includes carbon, manganese, phosphorus, sulfur, and trace alloying elements, balanced to provide high tensile strength, good ductility, and excellent weldability. The steel is typically supplied in the normalized or normalized and tempered condition to improve grain structure and toughness.

Mechanical properties include:

Minimum yield strength of 240 MPa (35,000 psi)

Minimum tensile strength of 415 MPa (60,000 psi)

Excellent notch toughness at temperatures as low as -45°C (-50°F)

Good elongation and impact resistance, allowing for safe use under thermal stress

Common applications for ASTM A333 GR.6 seamless boiler tubes include:

Low-temperature boiler tubes

Pressure vessels and heat exchangers

Low-temperature and refrigeration equipment

Petrochemical and refinery boilers

Power plant piping systems operating in cold conditions

ASTM A333 GR.6 boiler tubes are available in a variety of standard sizes and wall thicknesses and can be customized to meet project specifications. Ends are typically flat or beveled to facilitate welding and installation.

Rigorous quality assurance tests, such as hydrostatic testing, ultrasonic testing, chemical analysis, and low-temperature Charpy impact testing, ensure compliance with ASTM standards and customer requirements. Third-party certification and inspection are also available upon request.

In summary, ASTM A333 Grade 6 seamless boiler tubes are a reliable, high-performance solution for low-temperature boiler and pressure applications. Their seamless construction, superior mechanical properties, and excellent cold toughness make them a trusted choice for power generation, petrochemical, and industrial boiler systems.
