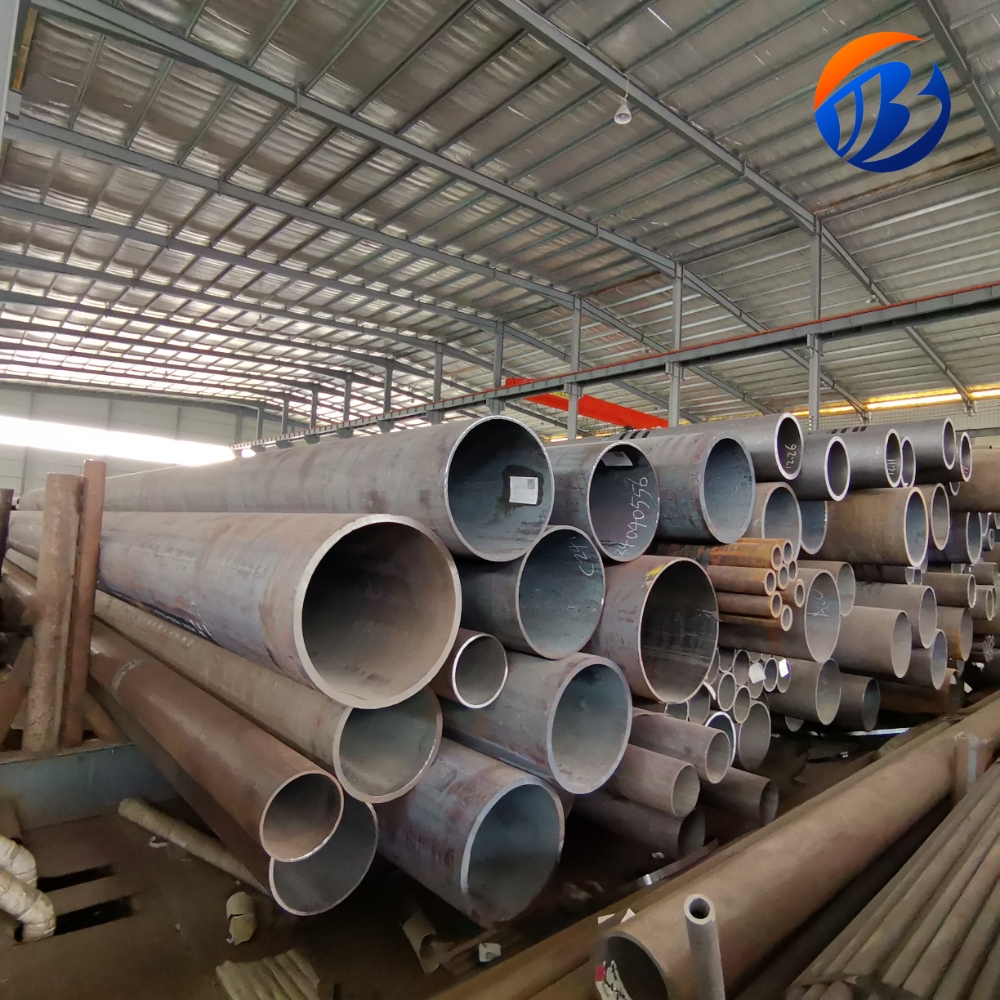

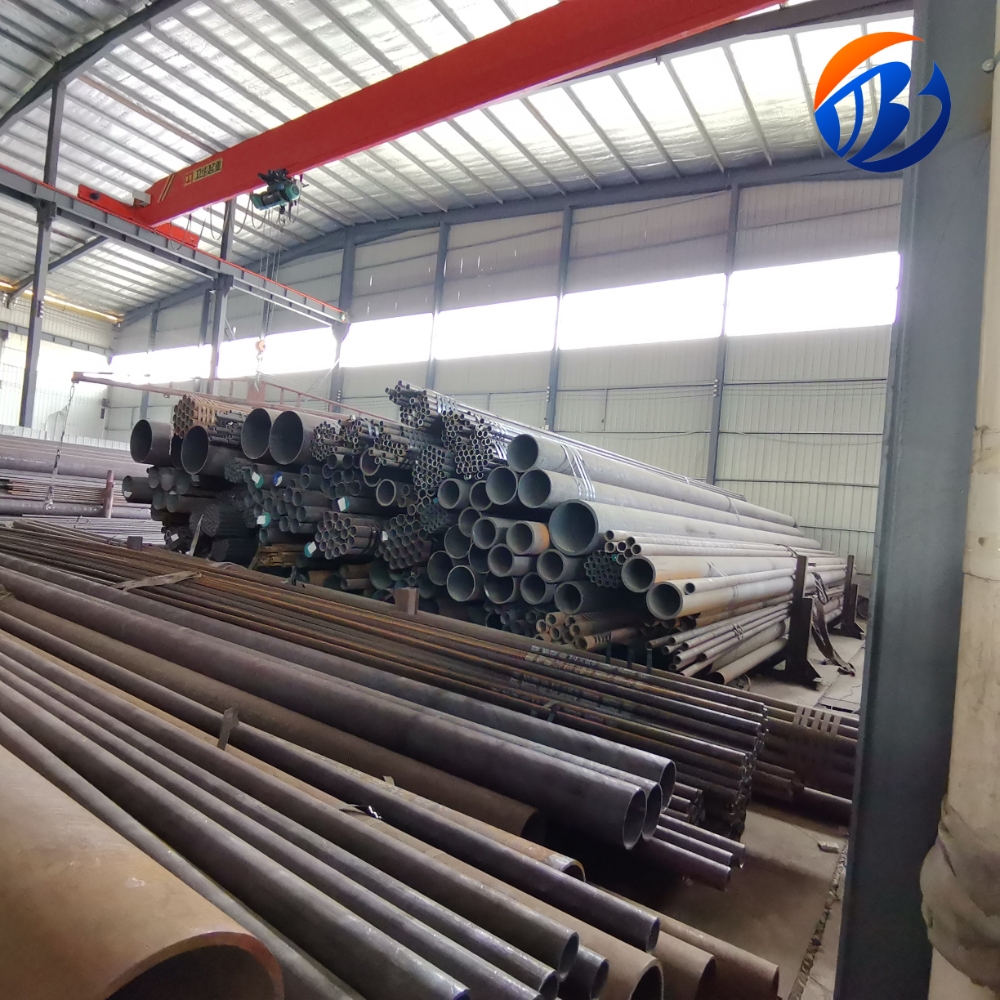

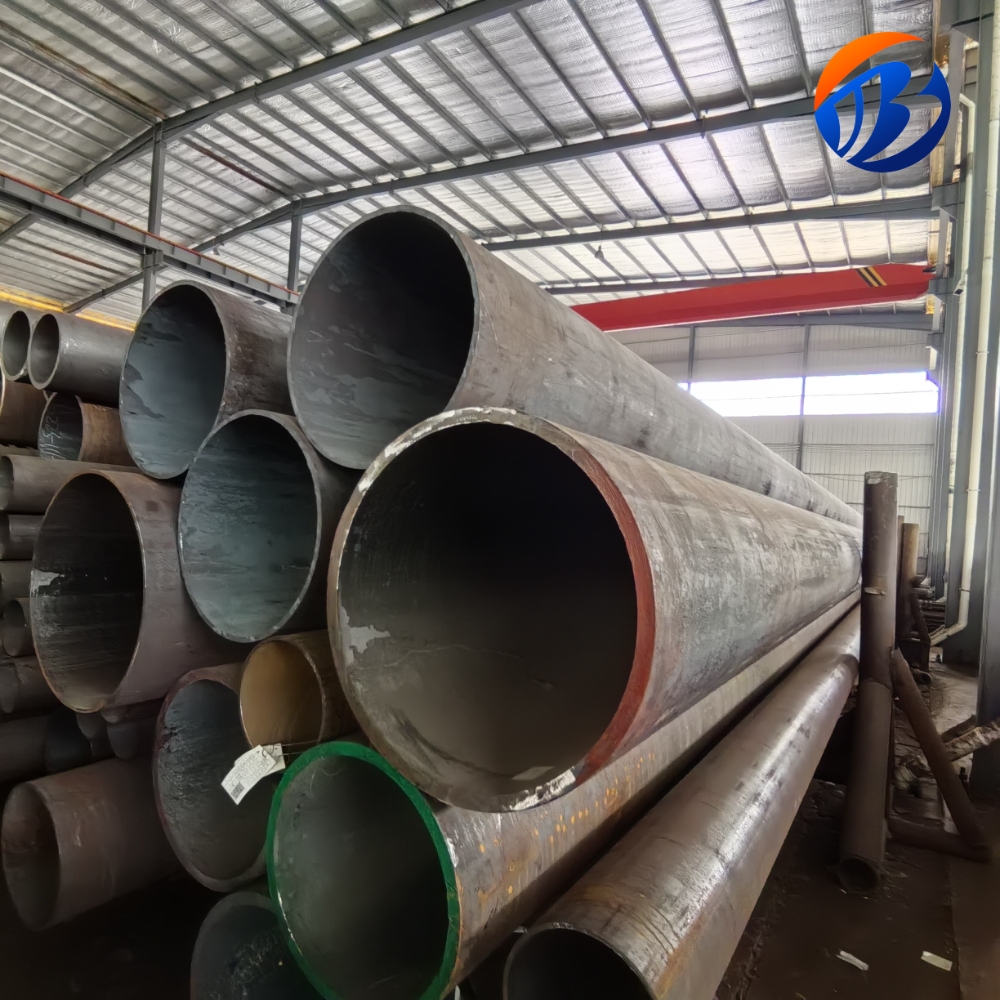

API 5L X52 refinery piping is a high-strength carbon steel pipe designed specifically for demanding refinery applications. Manufactured in accordance with the API 5L specification, X52-grade piping offers superior mechanical properties and exceptional durability, making it suitable for harsh refining environments where resistance to pressure, temperature fluctuations, and corrosive substances is critical.

This pipe grade has a minimum yield strength of 52,000 psi (approximately 360 MPa) and offers enhanced strength and toughness, making it an ideal choice for medium- to high-pressure piping systems in refineries, petrochemical plants, and other industrial facilities.

Material Composition and Manufacturing Process

API 5L X52 pipes are produced from controlled-alloy carbon steel with precise chemical compositions, including carbon, manganese, phosphorus, sulfur, and other trace elements. The steel is processed using seamless or welded methods, such as ERW (Electric Resistance Welding), LSAW (Longitudinal Submerged Arc Welding), or SSAW (Spiral Submerged Arc Welding), ensuring consistent quality and structural integrity.

The manufacturing process typically involves heat treatment steps, such as normalizing or quenching and tempering, to optimize mechanical properties, grain structure, and toughness. This enables the pipes to withstand the complex stresses encountered in refinery systems.

Mechanical Properties

Minimum yield strength: 52,000 psi (360 MPa)

Minimum Tensile Strength: Typically between 70,000 and 90,000 psi (485 to 620 MPa)

High Impact Toughness: Provides excellent resistance to cracking and brittle fracture

Good Ductility and Elongation: Supports flexibility and durability under pressure and thermal cycling

Excellent Weldability: Compatible with various welding techniques, facilitating on-site fabrication and repair

Key Features

High-Strength Performance: Ideal for refinery piping systems subjected to high pressure and thermal stress.

Corrosion and Heat Resistance: Capable of withstanding the corrosive environments and temperature fluctuations typical of refining processes.

Seamless and Welded Options: Multiple manufacturing methods to meet specific project and installation requirements.

Precision Dimensions: Manufactured to strict tolerances to ensure proper fit and efficient fluid flow.

Surface Protection: Available with coatings such as black paint, epoxy, galvanization, or advanced multi-layer coatings to extend service life.

Applications

API 5L X52 refinery piping is widely used in:

Transportation of crude oil and refined products within refineries

High-pressure process piping systems

Petrochemical plants and chemical processing facilities

Steam and natural gas piping in power plants and heating plants

Offshore and onshore refinery infrastructure

Pressure vessels and heat exchangers requiring durable piping solutions

Product Specifications

Diameter Range: Typically 1/2 inch to 48 inches, customizable for specific projects

Wall Thickness: Available in SCH10 to SCH160, XXS, or project-specific thicknesses

Length: Single Random Length (SRL), Double Random Length (DRL), or fixed-length cutting options

End Treatment: Plain End (PE), Beveled End (BE), Threaded End (TE), or customer-specific

Surface Treatment: Black paint, galvanized, epoxy coating, 3PE/3LPE multilayer coating, or other specialized finishes

Quality Assurance and Testing

To ensure reliability and compliance, every API 5L X52 pipe undergoes:

Hydrostatic testing

Non-destructive testing (NDT), including ultrasonic testing (UT), radiographic testing (RT), and magnetic particle inspection (MPI)

Mechanical testing for tensile strength, impact toughness, bending, and hardness

Chemical composition analysis in accordance with API 5L standards

Dimensional and visual inspections for accuracy and defect prevention

Certification from third-party inspection bodies such as SGS, BV, Lloyd’s Register, or TÜV is available upon request

Why Choose API 5L X52 Refinery Piping?

API 5L X52-grade piping offers the optimal balance of strength, toughness, and corrosion resistance required for refinery and petrochemical piping systems. Compliance with international standards, combined with rigorous quality control, ensures durability and safety in the most demanding industrial environments.
