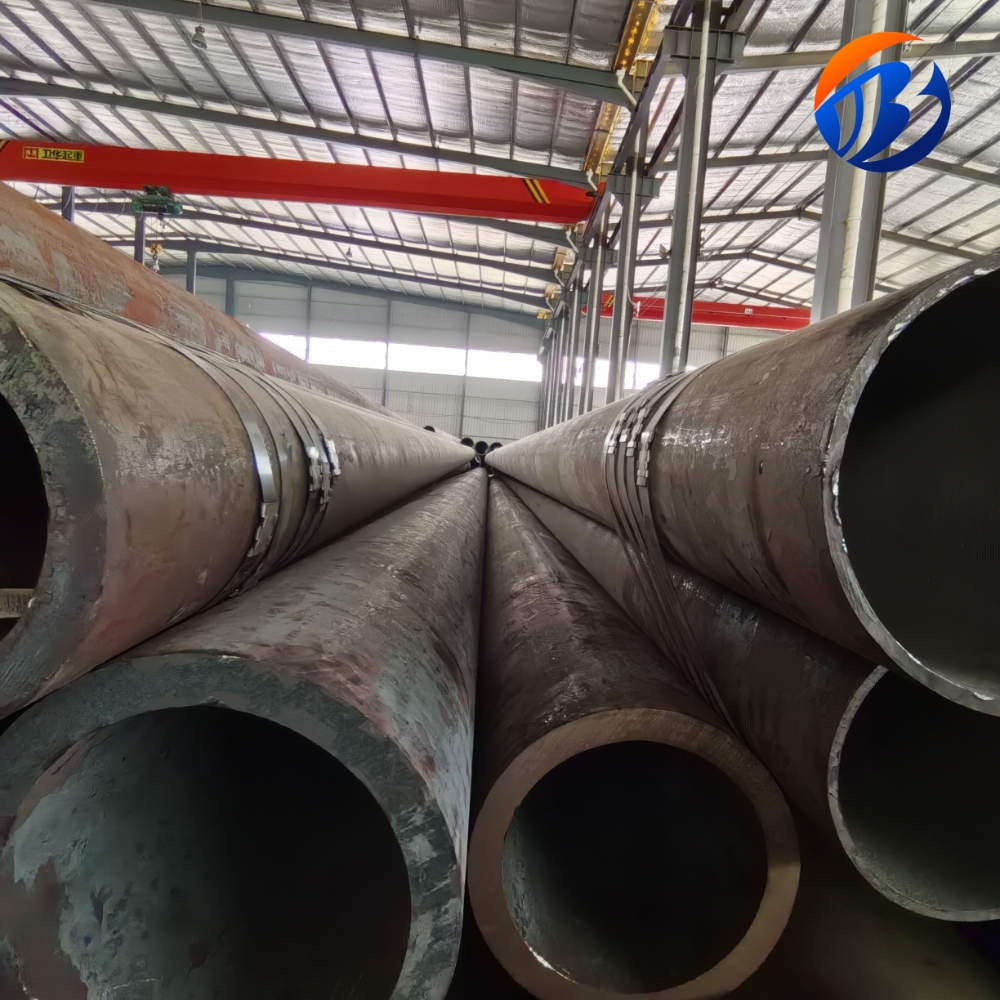

API 5L X56 LNG pipeline alloy steel pipe is a high-performance, medium-strength carbon-manganese steel pipe specifically designed for transporting liquefied natural gas (LNG) under high-pressure and low-temperature conditions. Manufactured in accordance with the API 5L specification, X56-grade pipeline steel has a minimum yield strength of 56,000 psi and offers excellent toughness, weldability, and crack resistance in low-temperature environments.

This alloy steel pipe is engineered for durability in harsh conditions, such as Arctic climates, subsea applications, and long-distance transmission lines handling LNG and other cryogenic fluids. Its robustness and stability under fluctuating temperatures make it a critical component of modern energy infrastructure.

Material Composition and Processing

API 5L X56 LNG alloy pipes are produced from low-carbon microalloyed steel, typically containing elements such as manganese, niobium, vanadium, and titanium. These alloying elements improve the steel’s grain refinement, enhance impact resistance, and enable the pipes to withstand low-temperature fracture stresses.

Depending on project requirements, the pipes can be manufactured in seamless, ERW, LSAW, or SSAW formats. Most pipes used for LNG pipeline service undergo a normalized or quenched and tempered (Q&T) process to optimize strength, ductility, and low-temperature toughness.

Mechanical Properties

Minimum yield strength: 56,000 psi (386 MPa)

Tensile Strength: 71,000–95,000 psi (490–655 MPa)

Excellent Low-Temperature Toughness: Reliable performance at low temperatures (down to -196°C)

High elongation and fracture resistance: Reduces the risk of brittle fracture during rapid pressure or thermal changes

Excellent weldability: Suitable for field fabrication and field welding under challenging conditions

Key Features

Low-Temperature Compatibility: Designed specifically for LNG transportation and storage systems, with proven performance at low temperatures.

High-Pressure & Thermal Stability: Maintains strength and dimensional integrity under extreme pressure and rapid temperature changes.

Corrosion Resistance: Alloy composition and optional coating systems (e.g., 3PE, FBE) provide long-term protection in offshore, coastal, and underground applications.

Compliance with International Standards: Manufactured to meet or exceed API 5L, ISO 3183, and DNV offshore pipeline standards.

Customizable Configurations: Available in a variety of wall thicknesses, lengths, and end finishes to meet the needs of different LNG pipeline projects.

Applications

API 5L X56 LNG pipeline alloy pipes are widely used in:

Liquefied Natural Gas (LNG) pipeline transmission systems

Subsea and offshore natural gas export pipelines

Pipelines for transporting cryogenic gases in petrochemical plants

Oil and gas infrastructure in the Arctic and permafrost regions

Onshore/offshore LNG receiving terminals, regasification units, and tank farms

Natural gas storage and distribution networks

Product Specifications

Size Range: 1/2 inch to 48 inches (OD 12.7 mm to 1219 mm)

Wall Thickness: SCH10 to SCH160, XXS, or custom thick-walled as required

Pipe Length: SRL (5.8 m), DRL (11.8–12 m), or custom lengths

Pipe Ends: Plain End (PE), Beveled End (BE), Threaded End (TE)

Surface Finishes: Black paint, painted, oiled, galvanized, or anti-corrosion coatings (3PE, FBE, epoxy, etc.)

Quality Control and Testing

To ensure safety and compliance, each pipe undergoes the following processes:

Hydrostatic Testing

Non-Destructive Testing (UT, RT, MPI)

Low-Temperature Charpy V-Notch Impact Test

Mechanical Property Testing: Tensile, Yield, Elongation, Bending

Chemical Composition Verification

Dimensional Inspection and Straightness Inspection

Third-Party Certification Available (SGS, TÜV, BV, LR, ABS)

Why Choose API 5L X56 LNG Pipeline Alloy Pipes?

Combining mechanical strength, low-temperature performance, and corrosion resistance, API 5L X56 offers a reliable solution for LNG pipeline projects that demand the highest levels of safety and reliability. Whether used in Arctic conditions, subsea LNG transportation, or long-distance onshore pipelines, this pipe delivers exceptional performance and a long service life, backed by global standards and rigorous quality control.
