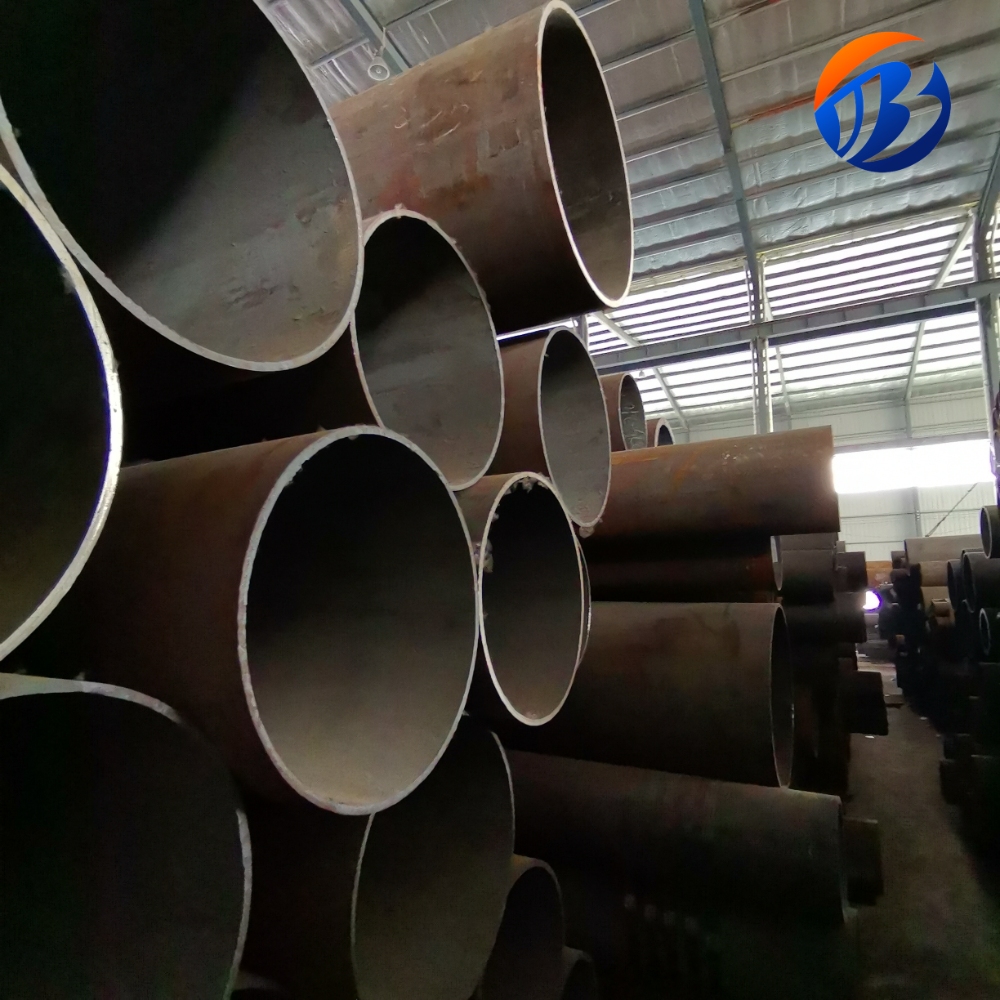

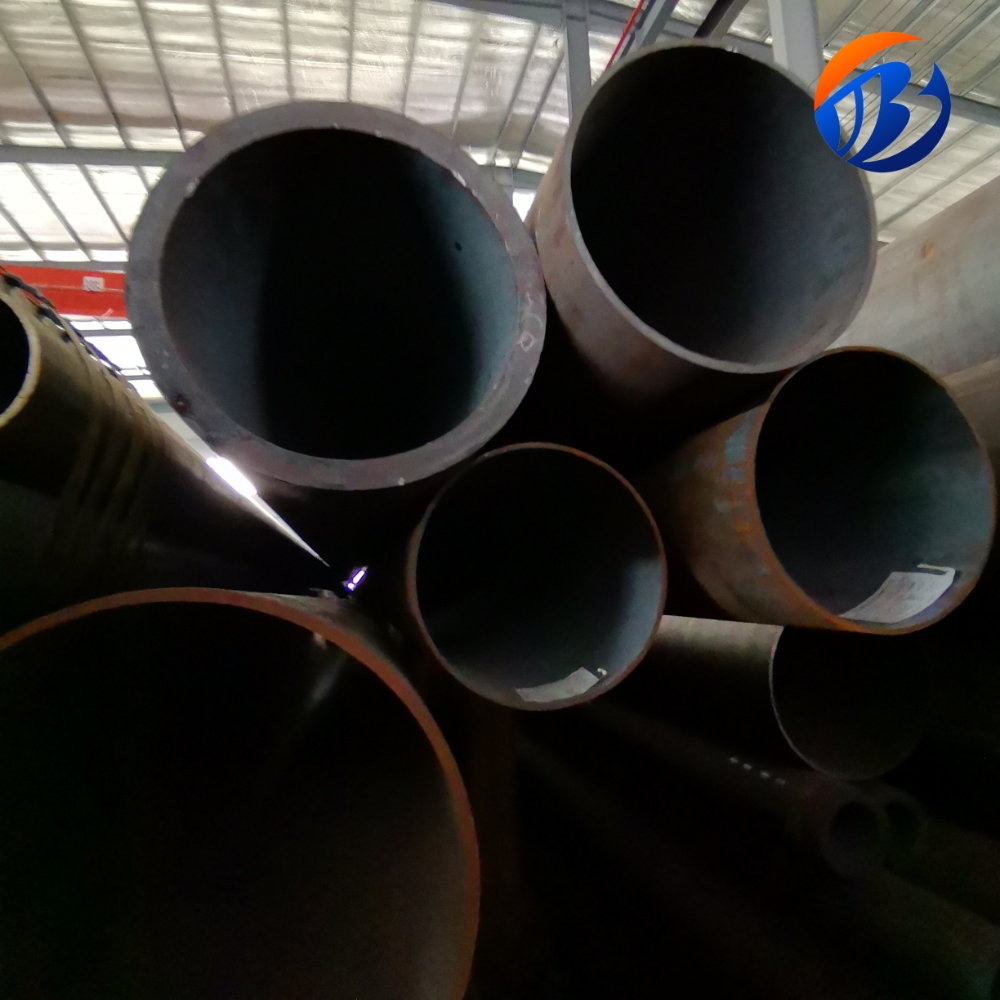

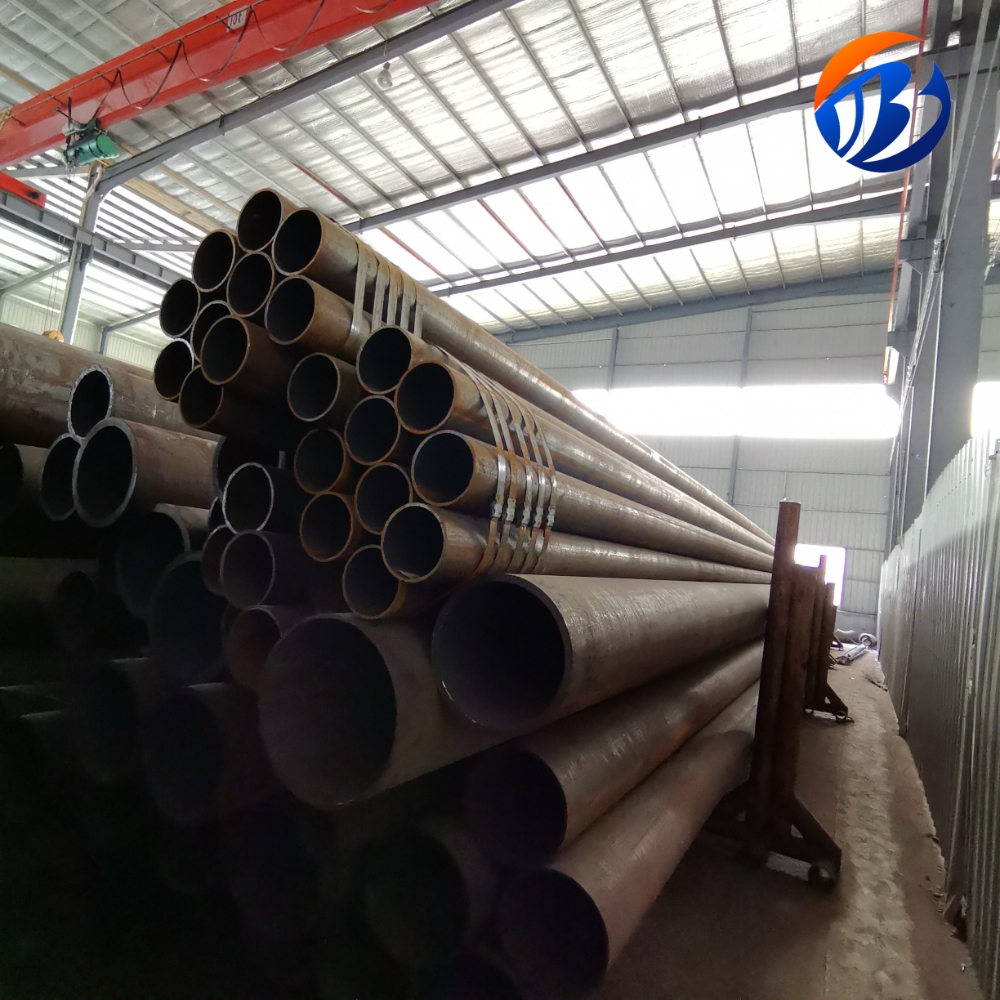

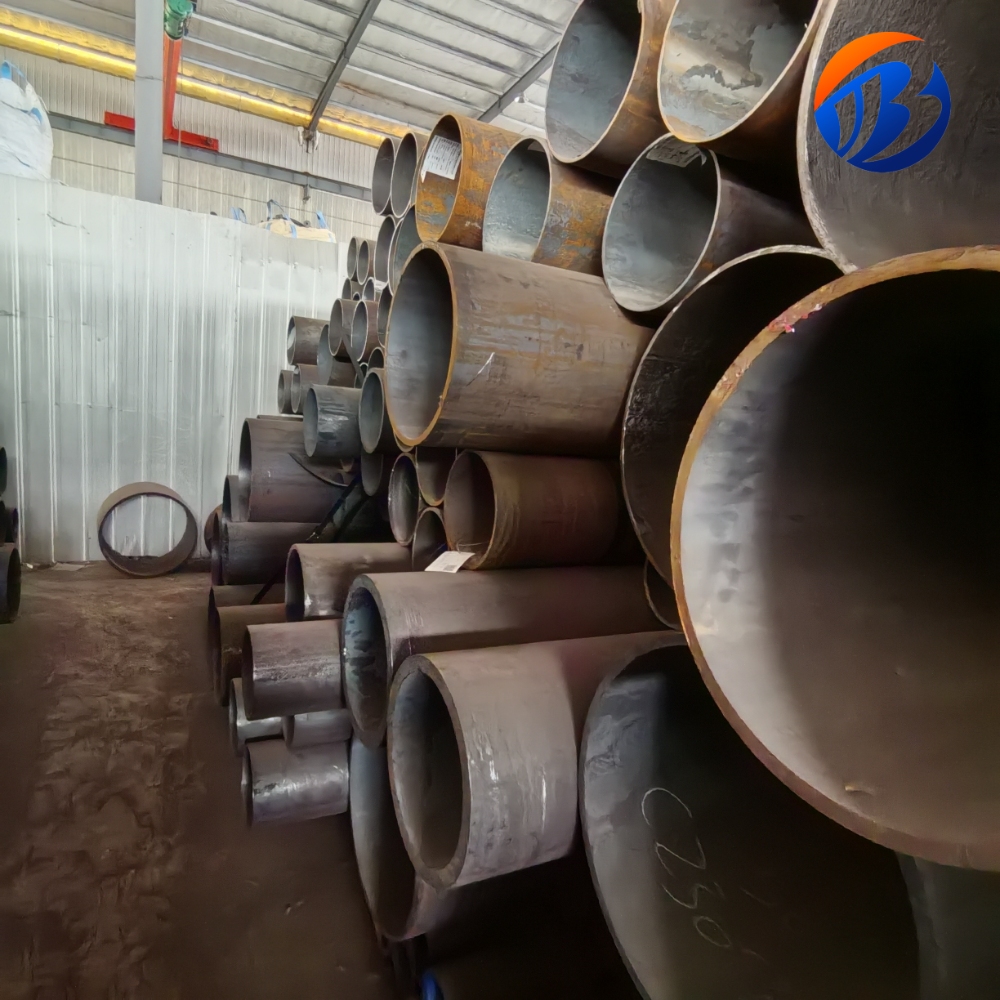

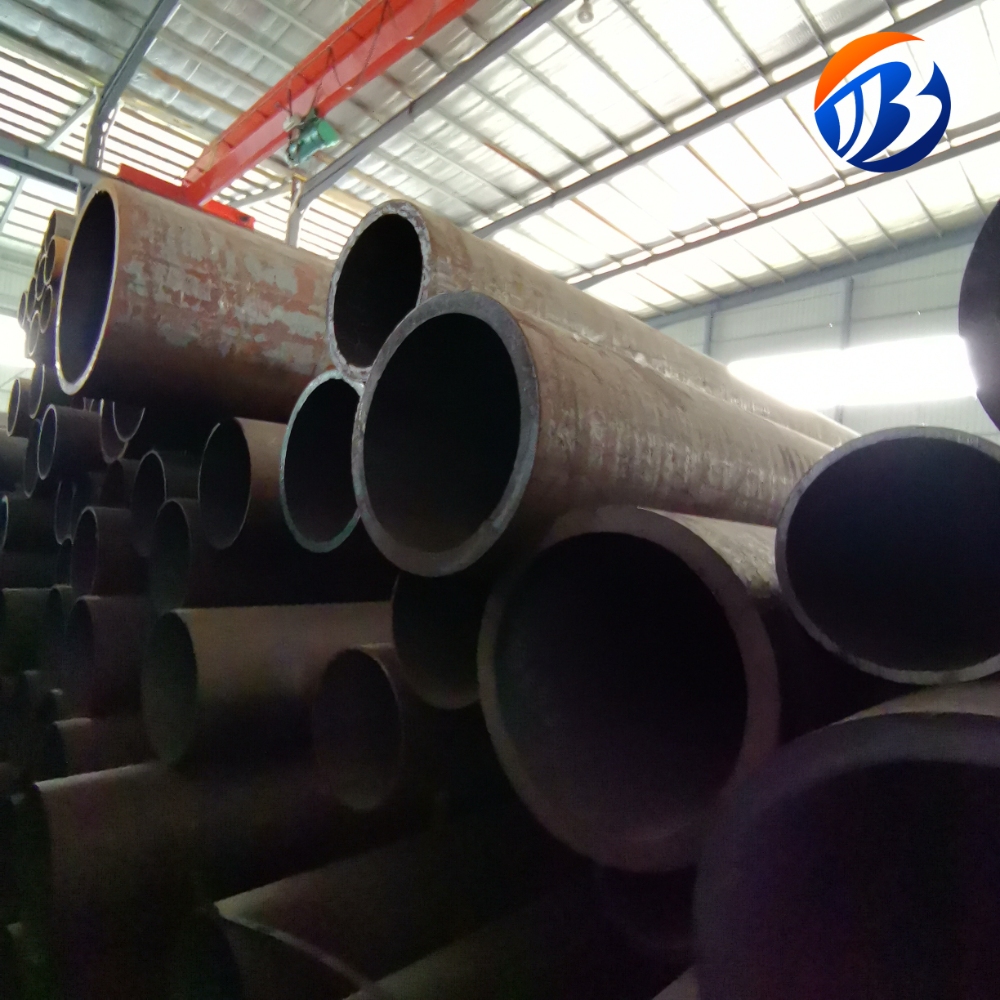

API 5L X60Q oil and gas pipeline tubing is a high-strength carbon steel pipe designed specifically for the safe and efficient transportation of oil, natural gas, and other hydrocarbons in onshore and offshore pipeline systems. Manufactured in accordance with the API 5L standard, this pipe is classified as Grade X60, indicating a minimum yield strength of 60,000 psi (415 MPa). The suffix “Q” denotes that the pipe has undergone a water-quenched and tempered (Q&T) heat treatment process, providing enhanced mechanical strength, notch toughness, and excellent resistance to brittle fracture and crack propagation in harsh operating environments.

API 5L X60Q line pipe is widely used in long-distance pipeline projects, oilfield gathering and transportation lines, natural gas networks, and offshore oil and gas platforms, where high strength and low-temperature performance are critical. The seamless construction of this pipe eliminates welded joints, ensuring uniform wall thickness, improved pressure integrity, and higher fatigue resistance, making it the preferred choice for demanding oil and gas operations.

The material used in X60Q line pipe typically consists of microalloyed carbon steel, often enhanced with niobium, vanadium, titanium, and other elements to refine the grain structure and improve yield and tensile strengths. Quenching and tempering processes further optimize the steel’s toughness, ductility, and resistance to hydrogen-induced cracking (HIC) and sulfide stress corrosion cracking (SSC), particularly in acidic environments containing hydrogen sulfide.

API 5L X60Q pipeline steel exhibits excellent tensile strength, impact resistance, and elongation properties, making it suitable for high-pressure, high-temperature, and low-temperature environments. These characteristics are critical for preventing catastrophic failures caused by sudden pressure fluctuations, ground movement, thermal expansion, or seismic activity, particularly in critical energy infrastructure and high-risk industrial applications.

API 5L X60Q line pipe is available in a wide range of outer diameters, from 1/2 inch to 48 inches, with wall thicknesses conforming to SCH40, SCH80, SCH160, or custom heavy-wall specifications. They are typically delivered in single random lengths (SRL), double random lengths (DRL), or custom fixed-length cuts. Depending on the pipeline design and connection method, pipe ends can be supplied as plain ends (PE), beveled ends (BE), or tapered ends (TE). Surface treatments may include black paint, anti-corrosion oil, varnish, or advanced protective coatings such as 3LPE (three-layer polyethylene), FBE (fusion-bonded epoxy), or hot-dip galvanizing, depending on the environment and corrosion protection requirements.

These pipes undergo rigorous quality control and inspection procedures throughout the manufacturing process. Key tests include hydrostatic pressure testing, non-destructive testing (ultrasonic, magnetic particle, radiographic), low-temperature Charpy V-notch impact testing, tensile and hardness testing, and chemical composition analysis to ensure full compliance with API 5L PSL 1 or PSL 2 specifications. Upon request, third-party inspection and certification from organizations such as SGS, TÜV, BV, DNV, or Lloyd’s Register can be provided to meet international project standards.

In summary, API 5L X60Q oil and gas pipeline is a high-performance piping solution that delivers strength, safety, and reliability for critical energy transportation applications. With its seamless construction, high-pressure resistance, and excellent low-temperature toughness, it is a trusted material for modern piping systems in the oil and gas industry. Whether used in Arctic regions, offshore oil fields, desert facilities, or urban distribution networks, API 5L X60Q ensures long-term performance, operational integrity, and environmental safety.
